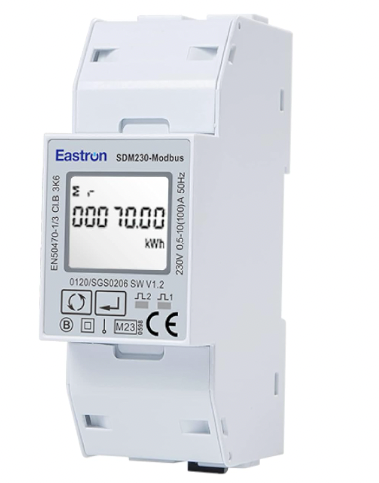

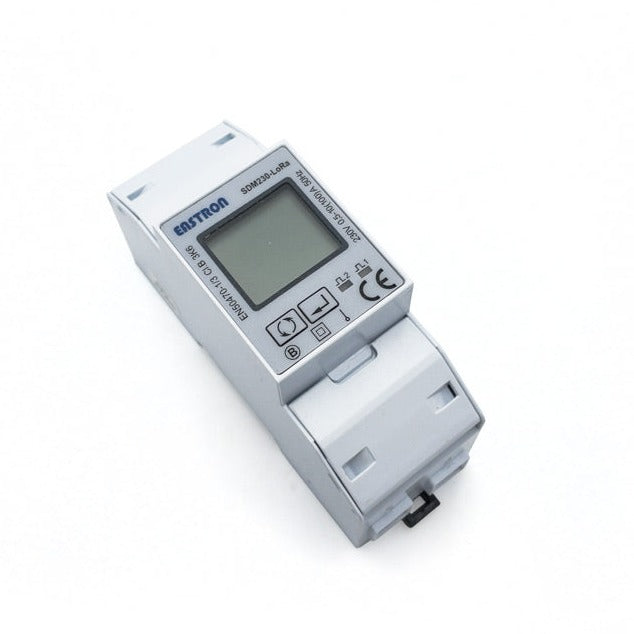

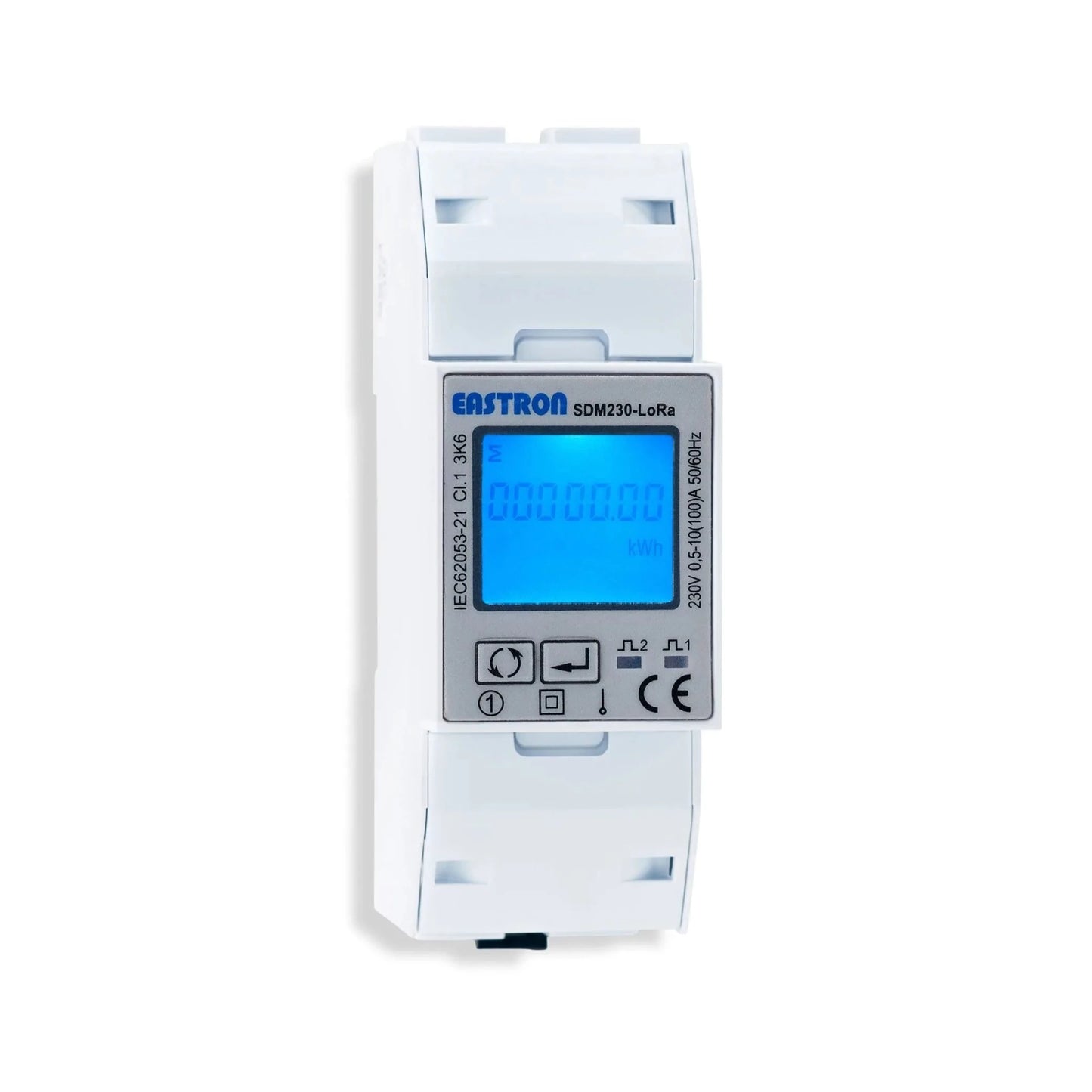

Eastron SDM230 LoRaWAN MID Single Phase Energy Meter

Advanced MID-approved multifunction single-phase energy monitor

The Eastron SDM230 LoRaWAN is an advanced MID-approved multifunction single-phase energy monitoring solution. This easy to install device can be DIN rail mounted for a fast set up.

This smart device measures and displays the output of single-phase two-wire (1p2w) supplies, and has a built-in LoRaWAN module.
Providing bi-directional measurements for kW and kWh, this meter can also measure parameters such as kVArh, PF, Frequency, Voltage, Current, THD, etc.

Features:

• Built-in LoRaWAN communication
• MID certified (B and D)
• Integrated backlit display
• High accuracy, Class 1 / Class 0.5s
• Configurable pulsed output
• Confirmation/Offline detection available
• Supports auto-upload mode for actively uploading data to back server
• Supports auto-resume mode for sudden loss of power
• Configurable download/upload times
• DIN rail mountable

Displayed Parameters:

• Phase to Neutral Voltage (V)
• Phase Current (A)
• Frequency (Hz)
• Power Factor (PF)
• Power max demand (MD kW)
• Active power (kW)
• Reactive power (kVAr)
• Apparent power (kVA)
• Import active power (kWh)
• Export active power (kWh)
• Total active power (kWh)
• Import reactive power (kVAh)
• Export reactive power (kVAh)
• Total reactive power (kVAh)
• Hours Run

Certification and Standards:

MID: EN50470-1 & EN50470-3 Class B
EMC: EN61326-1 & EN61326-2-3
LVD: EN61010-1 & EN61010-2-3
