Milesight UG65 8-Channel Indoor LoRaWAN Gateway

8-channel indoor LoRaWAN gateway

Long-range wireless connectivity offering seamless long-range connectivity over distances of up to 2 km in urban areas. UG65 supports receiving data from 8 end-devices simultaneously. And up to 2000 end devices overall.

The UG65 device excels at efficiently managing high volumes of traffic while consuming minimal power.

• Semtech SX1302
• Full-Duplex
• Support SF5 & SF6
• LoRaWAN Class A/B/C

Fast and powerful data processing:

• 512 MB DDR4 RAM
• NXP 64-bit Quad-Core Processor

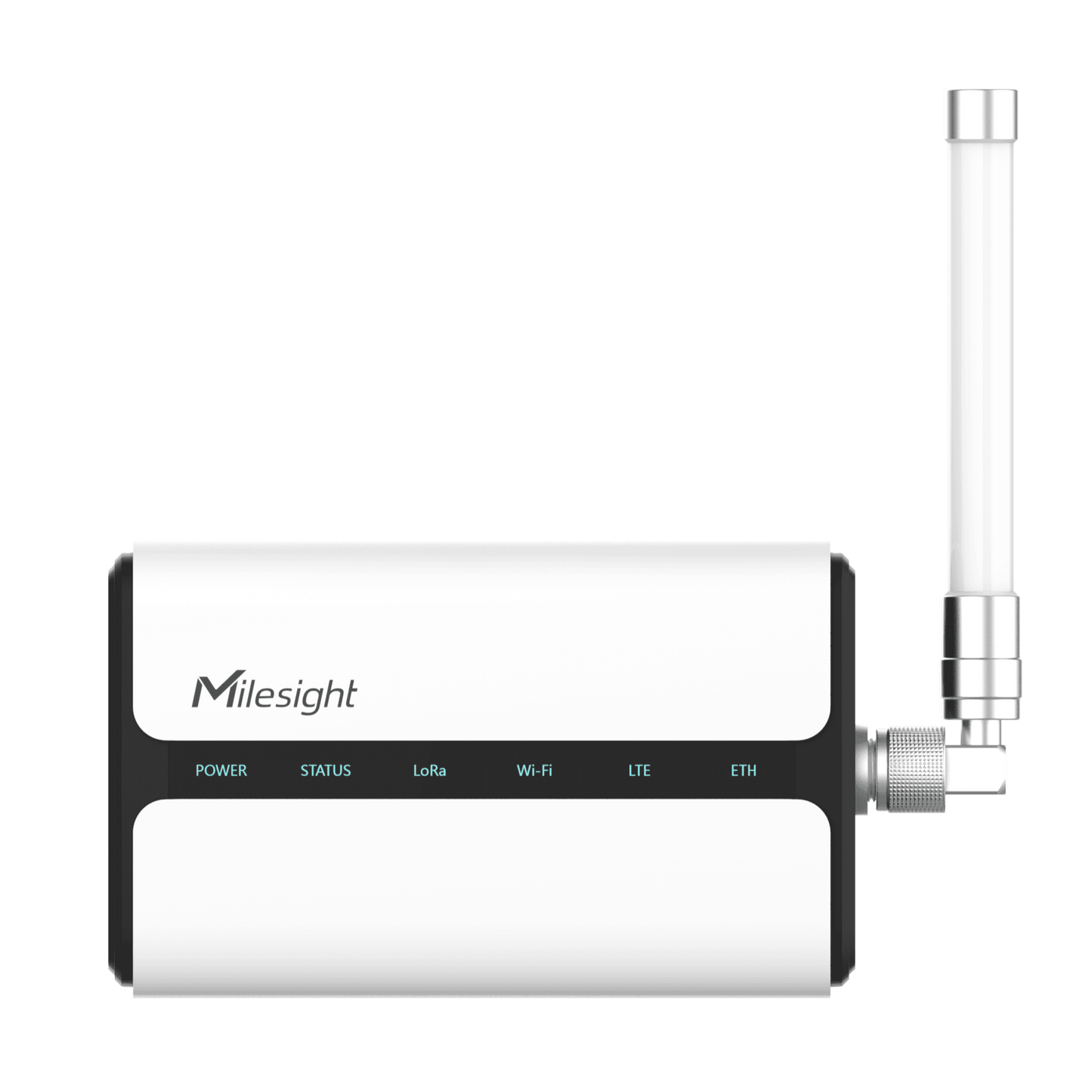

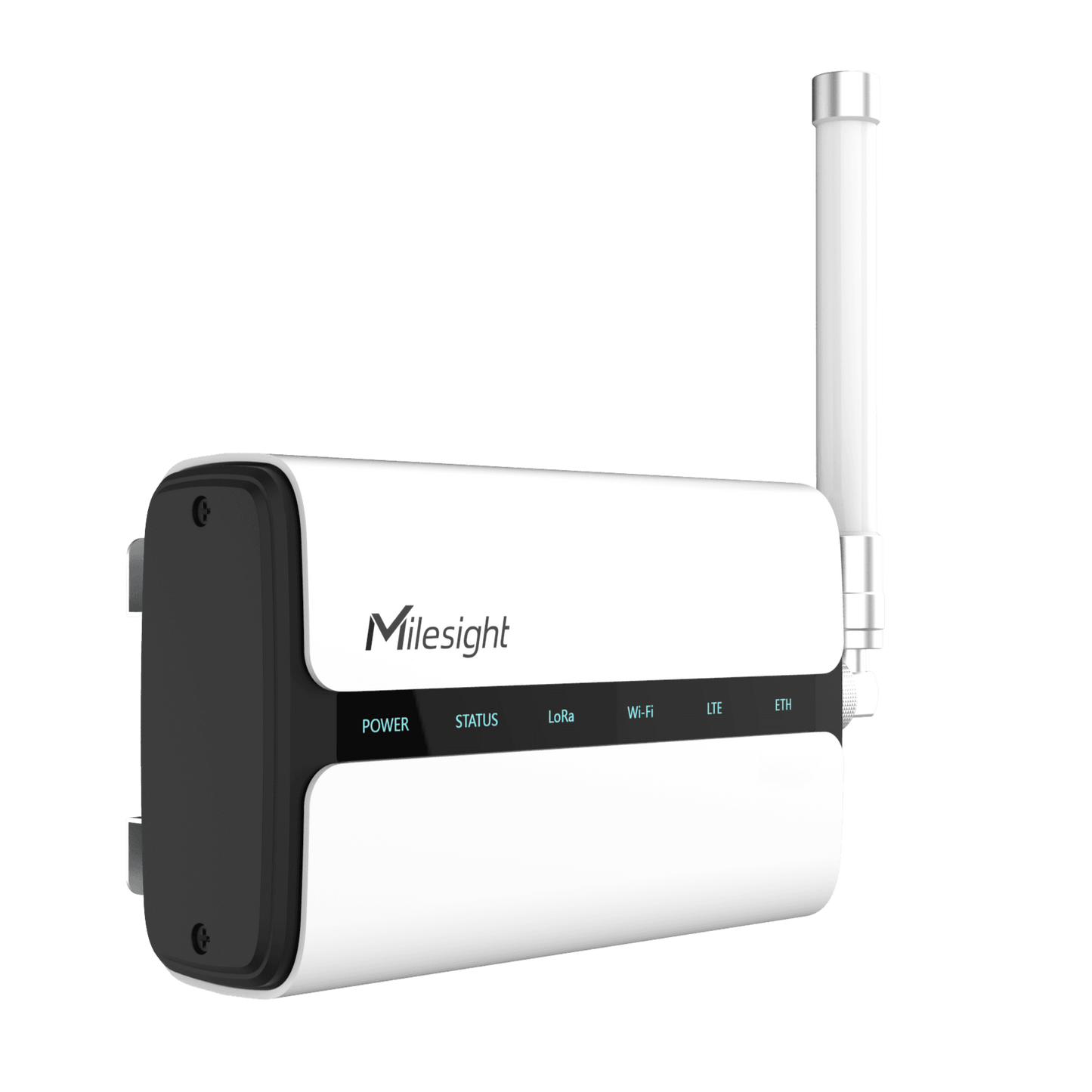

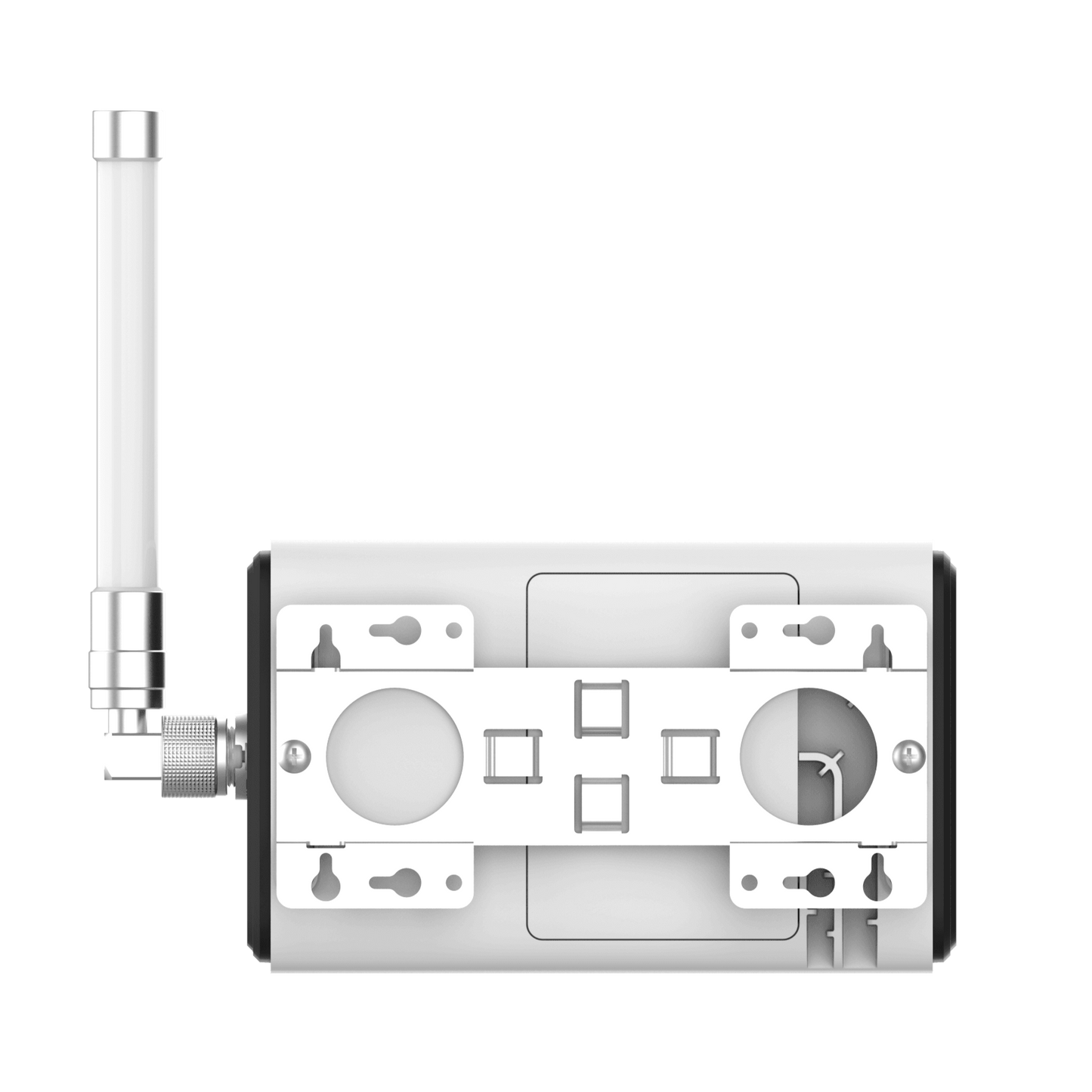

Integrated internal LoRa, Cellular, and Wi-Fi antennas. 1 external LoRa antenna (pictured) is optionally available to strengthen signal coverage.

Available with Ethernet/WiFi or Ethernet/WiFi/4G

BMS integration using BACnet

With support for BACnet/IP, real-time data can be seamlessly integrated into existing Building Management System (BMS).

BACnet over LoRaWAN
LoRaWAN serves as the data channel to the control applications
No changes to the BACnet protocol, network, or BACnet-enabled devices and management systems are needed

LoRaWAN as a Complementary Network
LoRaWAN network is independent of the core BACnet infrastructure
The LoRaWAN network feeds data to the BMS through a virtual BACnet server
LoRaWAN data and sensors appear to be part of the BACnet system
