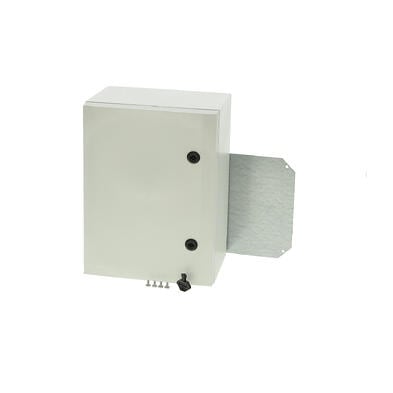

The Fibox ARCA is a high-quality cabinet made from UV-resistant polycarbonate, which is non-corrosive and has high impact resistance. The ARCA is ideally suited for outdoor applications or harsh and demanding indoor environments.

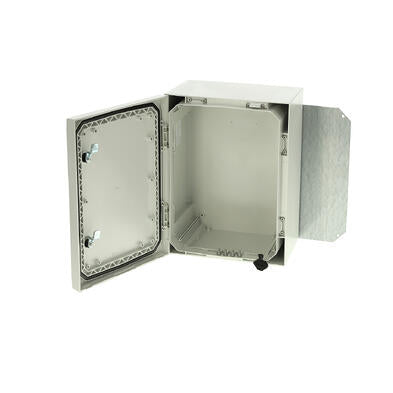

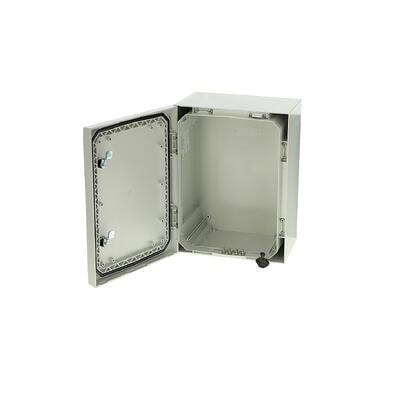

120° door opening
Pre-formed fixing studs inside Declined design on base for improved weatherproofing Patent-pending hinge design for easy assembly and refined appearance Double-bit locking and changeable lock inserts Mounting pods on the base, cover and four sides Wide and secured gasket with PUR material for high quality sealing Special moulded rib design and double corners provide additional stability and rigidity All wall mounting options outside the gasket area to aid IP rating IP66 and IK10 protected Fire resistant UL 94-5VA Electrically isolated 1500V DC Light Grey RAL 7035 Halogen free, UV resistant with good chemical resistance
Standards
EN/IEC 62208, EN/IEC 61439-1-4 RoHS directive 2011/65/EU Low Voltage Directive 2006/95/EC (up to 1500 VCD) Fimko certified
Supplied with: Cabinet, door with PUR gasket, unperforated mounting plate, screws for mounting plate, 3mm double bit lock(s) with key.
Dimensions 400 x 300 x 150 mm (11.81 x 15.75 x 5.91 in)
