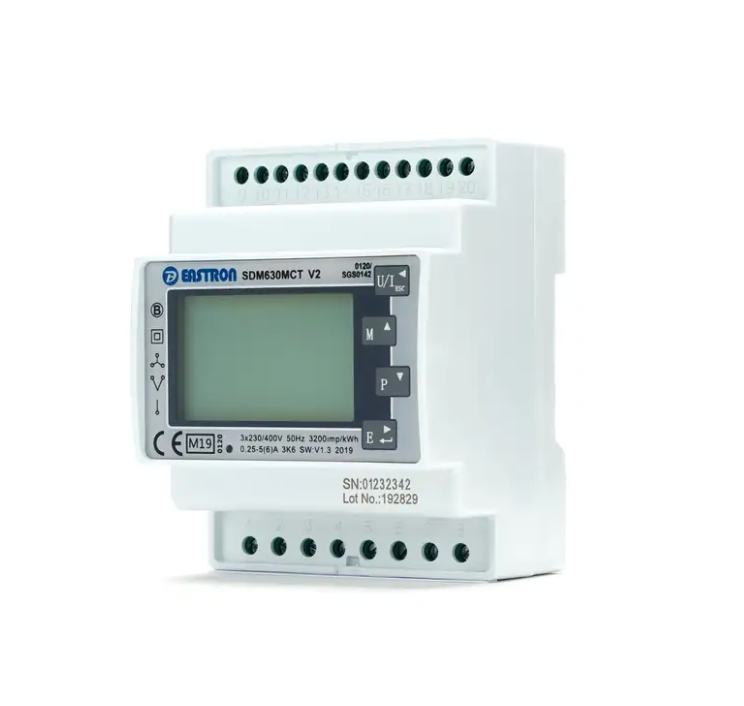

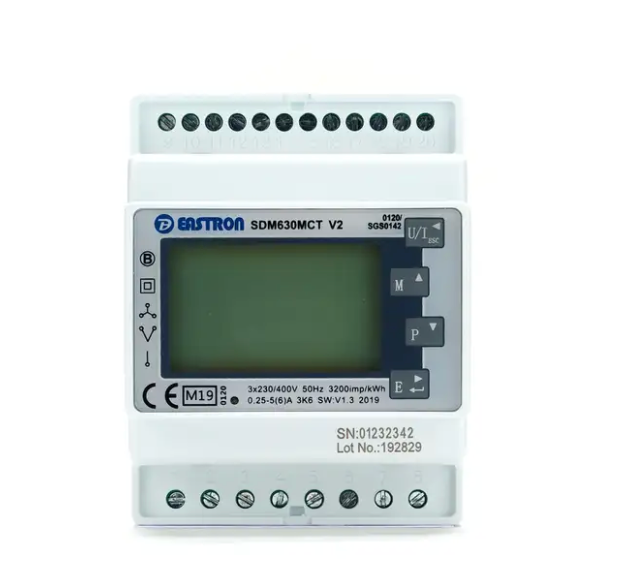

Eastron SDM630MCT Three Phase Energy Monitor

Advanced multi-function three-phase energy monitor

The SDM630MCT is an advanced multi-function three-phase energy monitoring solution. The meter is 1A or 5A CT connected device. The device measures negative power readings, which can also indicate a reversal of CT installation or connection. With built-in pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.

Features:

• MID Certified
• UL Listed
• Class 0.5 accuracy
• Single phase or three phase network compatible
• Four module DIN rail mounted
• Integrated backlit display
• Simple menu navigation
• Built in Modbus RS485 and Pulsed outputs
• An alternative Mbus interface is also available
• An alternative mV CT connected version is also available

Display Parameters:

• Phase to Neutral Voltage (V)
• Phase Current (A)
• Voltage Total Harmonic Distortion (U%THD)
• Current Total Harmonic Distortion (I%THD)
• Frequency (Hz)
• Power Factor (PF)
• Current Max Demand (MD A)
• Power Max Demand (MD kW)
• Active Power (kW)
• Reactive Power (kVAr)
• Apparent Power (kVA)
• Import Active Energy (kWh)
• Export Active Energy (kWh)
• Total Active Energy (kWh)
• Import Reactive Energy (kVArh)
• Export Reactive Energy (kVArh)
• Total Reactive Energy (kVArh)

Certification and Standards:

• MID: EN50470-1 & EN50470-3 Class B
• EMC: EN61326-1 & EN61326-2-3
• LVD: EN61010-1 & EN61010-2-3
• UL Listed
• IEC/EN62052-11:2003 Class 0.5s
