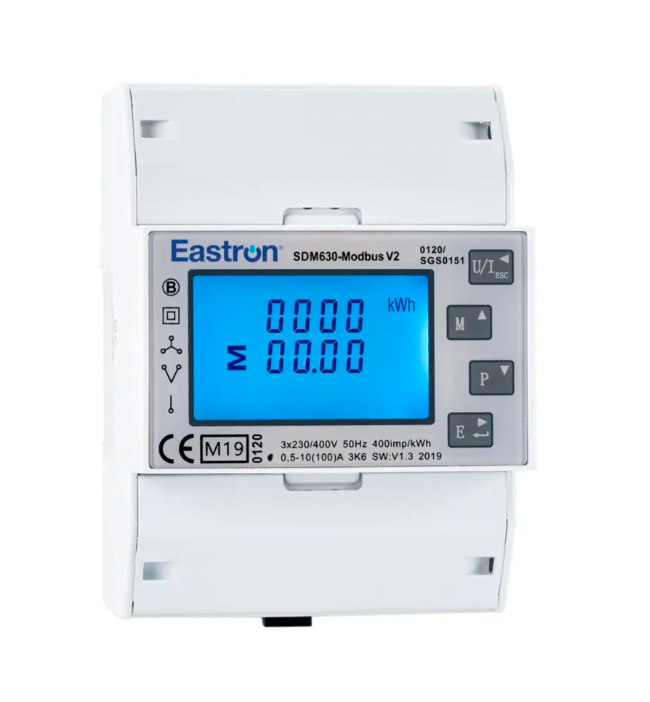

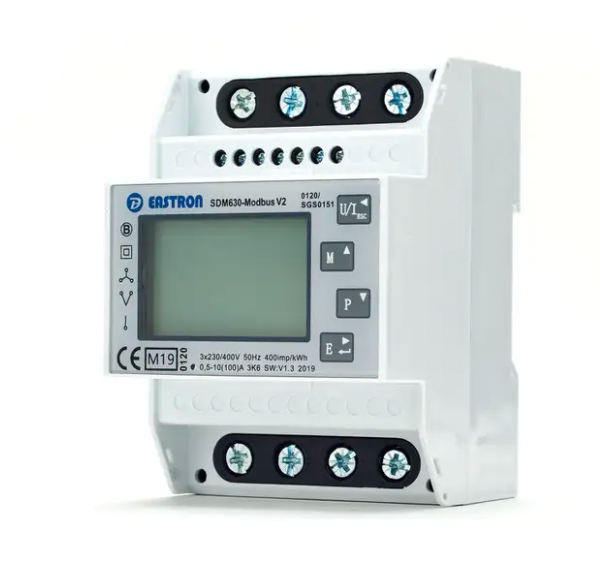

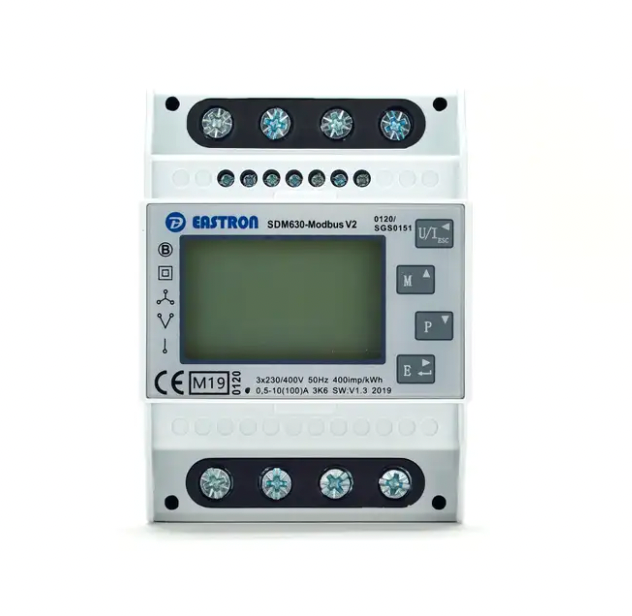

Eastron SDM630-MODBUS-MID V2 Three Phase Energy Monitor

Advanced multifunction three-phase energy monitor

The SDM630 Series is a three-phase multifunction 100A direct fed DIN rail mounted electricity meter. It is self-supplied so does not require an auxiliary supply. The meter supports Modbus RS485 along with a pulsed output. An alternative Mbus version is also available.

Features:

• MID Certified (B and D)
• Three phase 100A input
• Four module DIN rail mounted
• Integrated backlit display
• Simple menu navigation
• Built in Modbus and pulsed outputs (SDM630 Modbus)
• Alternative Mbus version is also available (SDM630 Mbus)
• Multi-tariff options are also available (SDM630 Modbus-MT)

Display Parameters:

• Phase to Neutral Voltage (V)
• Phase to Phase Voltage (V)
• Phase Current (A)
• Voltage Total Harmonic Distortion (U%THD)
• Current Total Harmonic Distortion (I%THD)
• Frequency (Hz)
• Power Factor (PF)
• Current Max Demand (MD A)
• Power Max Demand (MD kW)
• Active Power (kW)
• Reactive Power (kVAr)
• Apparent Power (kVA)
• Import Active Energy (kWh)
• Export Active Energy (kWh)
• Total Active Energy (kWh)
• Import Reactive Energy (kVArh)
• Export Reactive Energy (kVArh)
• Total Reactive Energy (kVArh)

Certification and Standards:

• MID: EN50470-1 & EN50470-3
• EMC: EN61326-1 & EN61326-2-3
• LVD: EN61010-1 & EN61010-2-3
• IEC/EN62052-11 2003 Class 1 or 2
