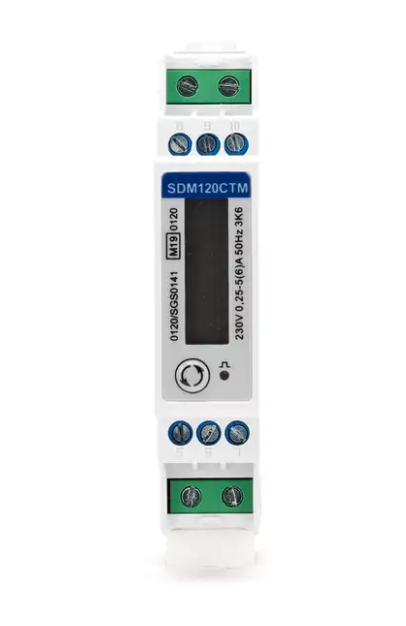

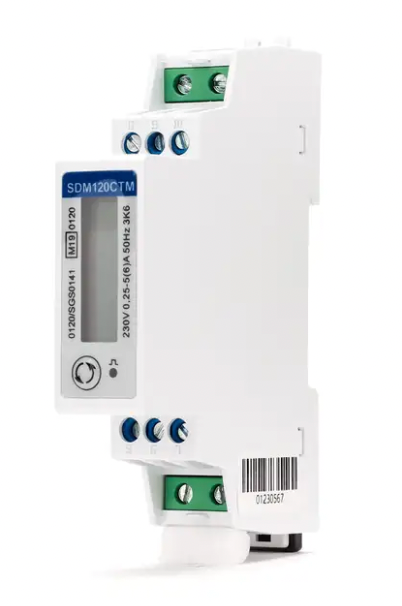

Eastron SDM120CT Single Phase Energy Monitor

Advanced multifunction single-phase energy monitor

The SDM120CT Modbus is an advanced multifunction single phase energy monitoring solution. Also available as Pulsed or Mbus outputs, please enquire for more details.

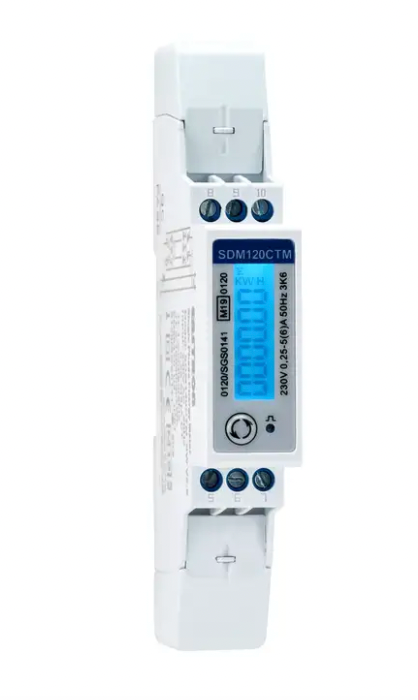

Equipped with scroll display button for ease of navigation through the various parameters and a backlit LCD display for clear indication in all conditions. Housed for DIN rail mounting. 5A current transformer operated.

Selectable measurement modes for kWh display, Total kWh (Import + Export), Import kWh and Net kWh (Export - Import).

Features:

• Single Phase 5A current transformer operated
• MID Certified (B and D)
• Integrated backlit display
• Bi-directional measurement for kW and kWh
• Configurable pulsed output (Import, Export, Net kWh)
• RS485 Modbus (or alternative Mbus variant available)
• Multi-parameter measurements
• Simple set up and operation
• DIN rail mountable

Display Parameters:

• Active energy (kWh)
• Reactive energy (kVArh)
• Active power (W)
• Reactive power (VAr)
• Apparent power (VA)
• Voltage (V)
• Current (A)
• Power factor
• Max Demand
• Frequency

Certification and Standards:

• MID: EN50470-1 & EN50470-3 Class B
• EMC: EN61326-1 & EN61326-2-3
• LVD: EN61010-1 & EN61010-2-3

Download the Datasheet

Download the Manual

Download the Protocol

Contact us to find out about additional products and services from our partners at Go Monitor:

• Configuration support
• Managed gateways (on the Go Monitor LoRaWAN network)
• Full end-to-end solution with custom cloud dashboards
