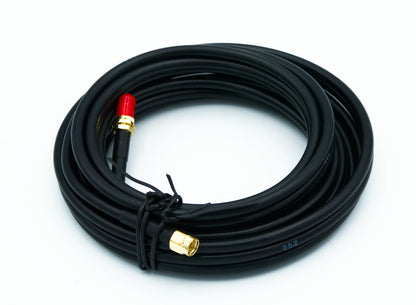

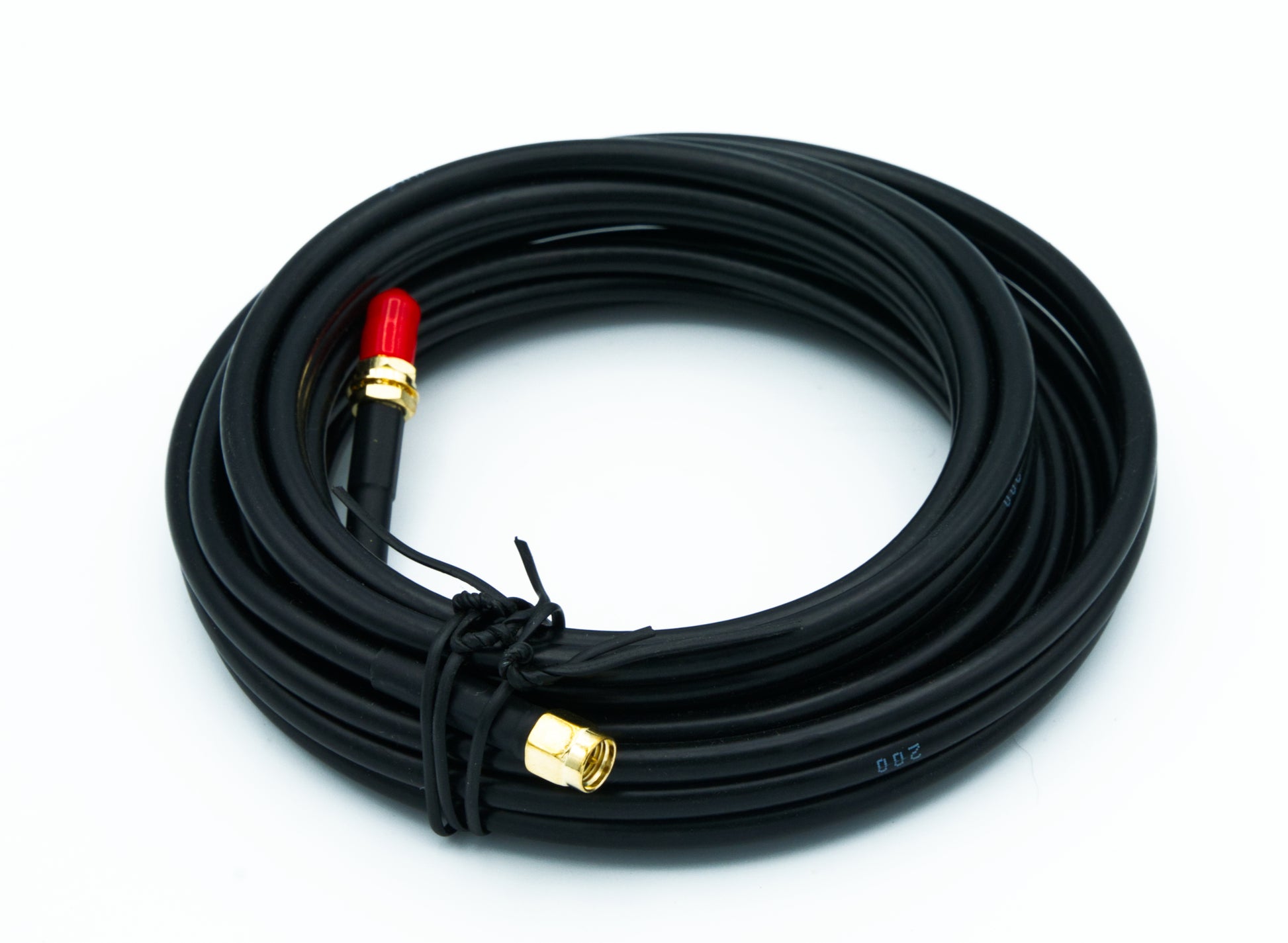

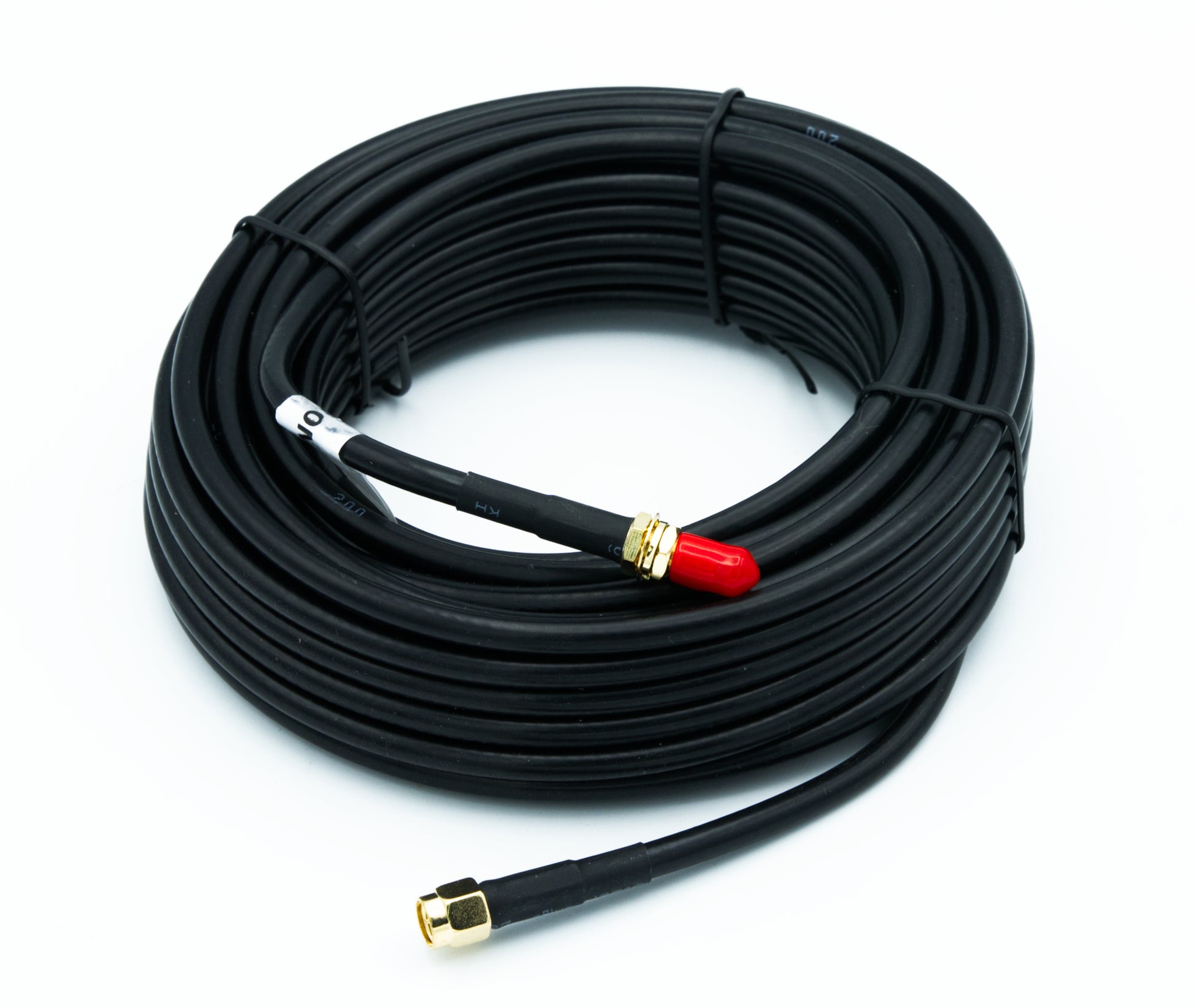

Antenna Extension Cable SMA M to F

Low loss 50 Ohm SMA Male to Female RF coaxial cable

Available in 2, 5, 10 or 15 meter length.

Frequency range(MHz):  0-6GHZ
Connectors:    SMA Male/Female
Nominal impedance:  50Ω
Nominal velocity of propagation: 83%
Capacitance (pF/m): 80.4
Material: Copper
Inner conductor O.D (mm): 1.12 bare copper solid
Dielectric O.D (mm): 2.95 closed-cell PE
Outer conductor O.D (mm): 3.66 sealed AI./Mylar AI.+ tinned copper braid (85%)
Standard jacket (mm): 4.95 black PVC
Weight (kg/m): 0.037
Cable:  CFD 200
Operating temperature: -20℃~70℃

Contact us to find out about additional products and services from our partners at Go Monitor:

• Configuration support
• Managed gateways (on the Go Monitor LoRaWAN network)
• Full end-to-end solution with custom cloud dashboards
